WI-FI Antenna / Product

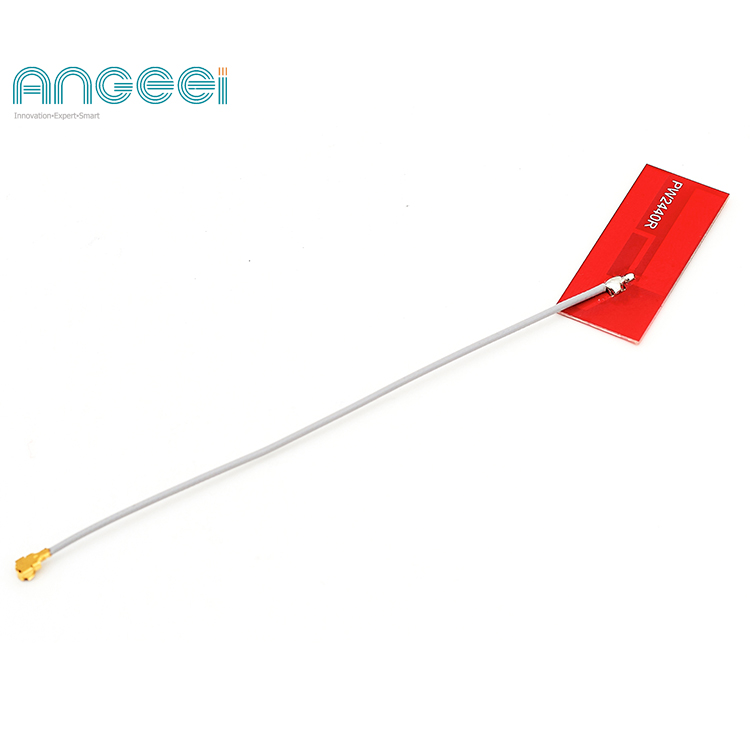

PW2440R-xxxG13U1S
更新时间：2019-01-17 11:28:22点击次数：次
相关介绍
| SPECIFICATION | |
| PN | PW2440R-xxxG13U1S |
| Frequency Range | 2.4-2.49GHz |
| Peak Gain | 2.44GHz:3.8dBi |
| VSWR | 2:1 |
| Power Handling | 30 dBm |
| Feed Impedance | 50ohm |
| Interface | GU.FL |
| Dimension | 31.5mm×14.2mm×0.8mm |
| Solder Mask Color | Red |
| Operating temperature | -30° C to +80° C |
| Humidity range | 5% to 95% non-condensing |
| RF Cable | RF 1.13/1.37 Black/Grey/White/Blue |
