WI-FI Antenna / Product

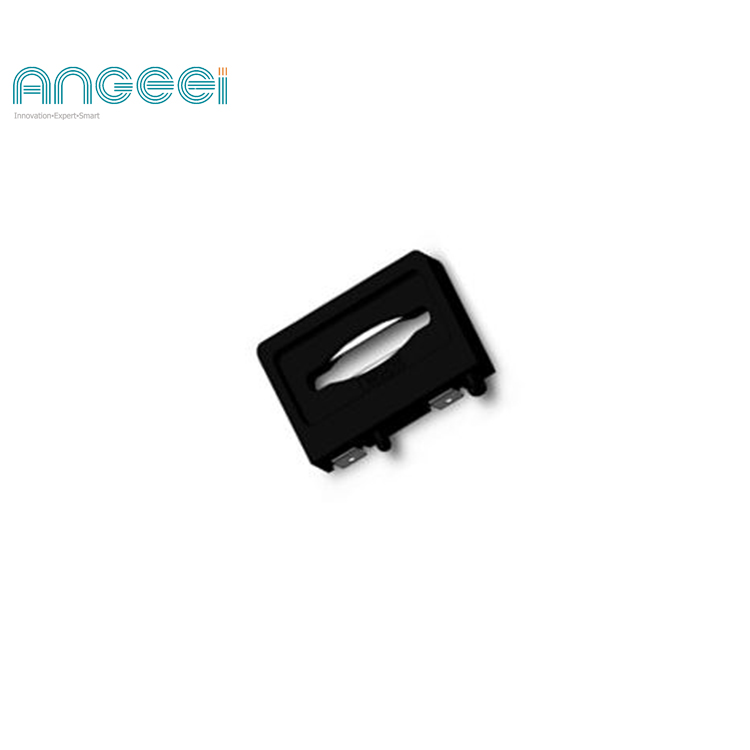

LW2435
更新时间：2019-01-17 11:36:25点击次数：次
相关介绍
| SPECIFICATION | |
| PN | LW2435 |
| Frequency Range | 2.4-2.49GHz |
| Peak Gain | 2.44GHz:3.5dBi |
| VSWR | 2:1 |
| Power Handling | 30 dBm |
| Feed Impedance | 50ohm |
| Interface | SMD |
| Dimension | 21.5mm×10.5mm×3.8mm |
| Cover material(color) | Plastic(Black) |
| Operating temperature | -30° C to +80° C |
| Humidity range | 5% to 95% non-condensing |
