WI-FI Antenna / Product

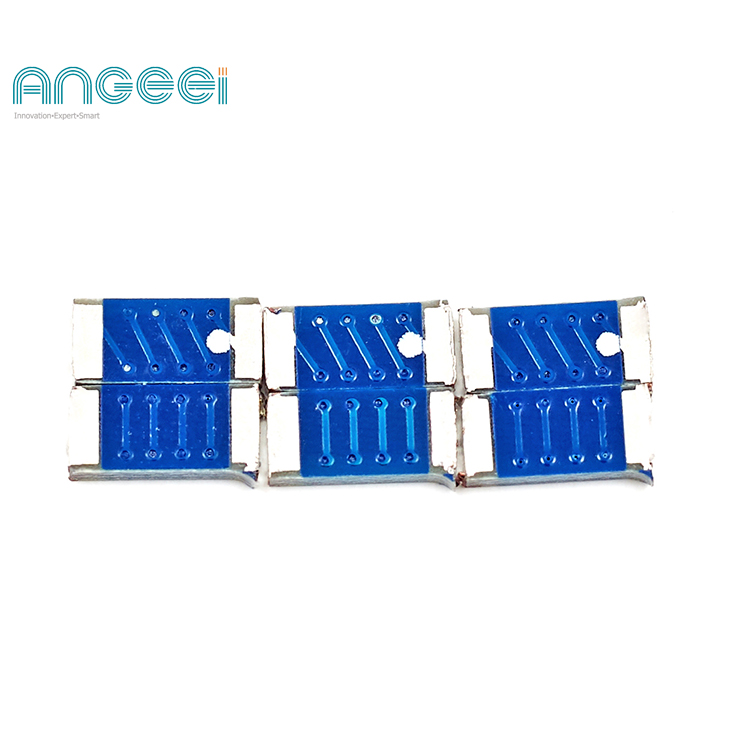

PW2416CH
更新时间：2019-01-17 11:42:38点击次数：次
相关介绍
| SPECIFICATION | |
| PN | PW2416CH |
| Frequency Range | 2.4-2.49GHz |
| Peak Gain | 2.44GHz:1.6dBi |
| VSWR | 2:1 |
| Power Handling | 30 dBm |
| Feed Impedance | 50ohm |
| Interface | SMT |
| Dimension | 6.15mm*3mm*1.0mm |
| Solder Mask Color | Blue/Black |
| Operating temperature | -30° C to +80° C |
| Humidity range | 5% to 95% non-condensing |
